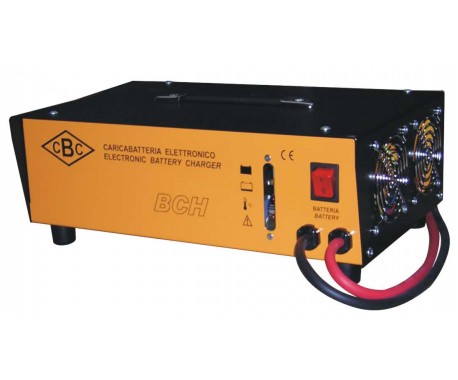

BCH 12/25
The model BCH is a battery charger...
View larger

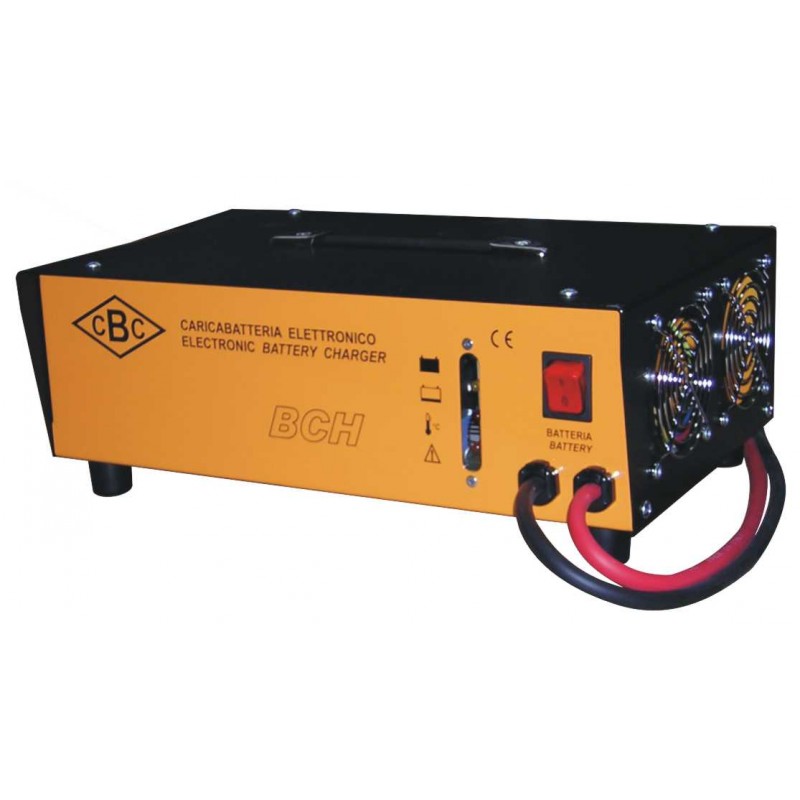

BCH 12/25
New
The model BCH is a battery charger switching technology with a current and voltage controlled, charging curve in three phases.
The model BCH is a battery charger switching technology with a current and voltage controlled, charging curve in three phases.
Step 1 Charge with constant current self-limited.
Step 2 Charging with constant voltage and current free.
Step 3 Charge with constant voltage reduced suitable to the maintenance, even for long periods, during the maintenance phase the current of charge compensates for any absorption of the system.
It is equipped with a further pulses charge phase switched off, this charging phase is suitable for lead-acid accumulators with flat plate (WET), normally used in electric traction.
You can also set the BCH model for the different types of batteries.
| Supply | 230V 50-60Hz 1ph |
| Type of charge | Constant current, constant voltage 2 levels |
| kW Max | 2,5 |
| Battery voltage | 36 |
| Max charge Acc | 25 |
| Ah rechargeable battery - MIN | 125 |
| Ah rechargeable battery Max in 8/10h | 250 |
| Ah rechargeable battery Max in 12/15h | 350 |
| Directive LVD | 2014/35/UE |
| Directive EMC | 2014/30/UE |
| Directive RoHS2 | 2011/65/EU and 2015/863 Annex II of RoHS2 |
| Protection degree | IP 21 |
| Dimensions mm. | L 350 x P 240 x H 135 |
| Weight kg. | 6 |
| Charge voltage (FOR RESEARCH) | 36 |
| Battery Ah (FOR RESEARCH) | 250 |
